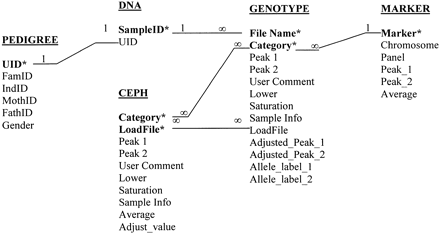

Relational schema for GenoDB. (*), The field of a primary key of an entity; (1), the side of “one” relationship; (∞), the side of “many” relationship. The entity pedigree stores the pedigree information, including study subject unique identity ([UID]), family identity ([FamID]), study subject individual identity within a family ([IndID]), subject's mother's (father's) identity within a family ([MothID], [FathID]), and gender information ([Gender]). dna stores the DNA sample information, including DNA sample identity ([SampleID]) and corresponding study subject unique identity ([UID]). The fields [File Name], [Category], [Peak 1], [Peak 2], [User Comment], [Lower Signal], [Saturation], and [Sample Info] in both the entities ceph and genotype are defined the same as those used in the software GENOTYPER (version 2.1). The fields [LoadFile], [Adjusted_Peak_1], [Adjusted_Peak_1], [Allele_label_1], and [Allele_label_2] in the entitygenotype are explained in the text. ceph stores the information of CEPH controls that run in a fixed place in each gel. The field [LoadFile] is explained in the text. [Average] stores the mean length of [Peak 1] and [Peak 2] of the entityceph. [Adjust_value] stores the difference between the [Average] of CEPH control (in the ceph entity) obtained from experiments and the [Average] of CEPH standard (in themarker entity) obtained from published data from the web for the same dinucleotide marker. The fields [Marker], [Chromosome], and [Panel] in the entity marker store the information for marker name, the chromosome where a marker is located, and the panel where the marker is placed. The fields [Peak_1] and [Peak_2] store the published values of fragment length for CEPH 1347–02 from the Web site of Perkin-Elmer Applied Biosystems (http://www.pebio.com/ab/apply/dr/lmsv2). The field [Average] in the entity marker stores the mean of [Peak_1] and [Peak_2].
