Massive Sequence Comparisons as a Help in Annotating Genomic Sequences

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

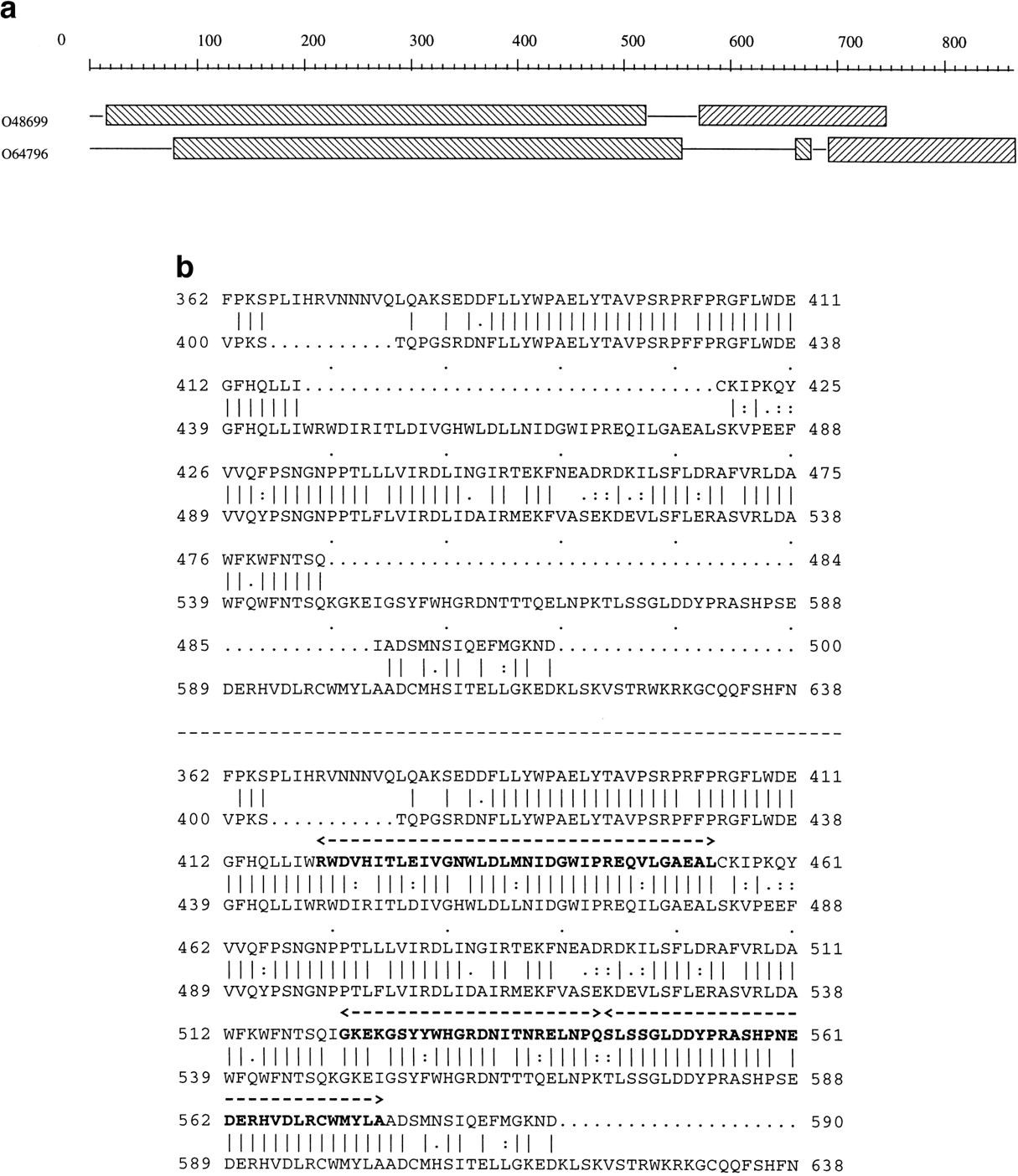

(a) XDOM representation of cluster 864. The distance between the two main domains is shorter in O48699 than in O647965. (b) The protein alignment shows two long insertions in O64796. The prediction programs have probably missed three exons in the gene sequence of O48699 as explained in the text (the missing exons are shown in boldface).

This Article

  1. Published in Advance June 12, 2001, doi: 10.1101/gr.177601 Genome Res. 11: 1296-1303
