High-Throughput Genotyping with Single Nucleotide Polymorphisms

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

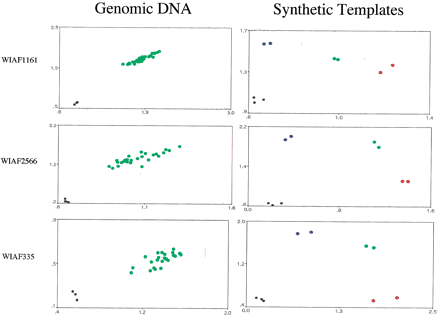

Pseudo-SNPs. (Left) Genomic DNA from 25–30 individuals was typed for the indicated SNPs. The axes are as in Figs. 1 and 2. Green dots are inferred to be heterozygotes; homozygotes are conspicuously absent. (Right) Synthetic templates bearing one (red dots) or the other allele (blue dots) were typed in duplicate using the same probes and primers used at left. Heterozygotes made by mixing equal amounts of homozygotes are shown in green.

This Article

  1. Published in Advance June 12, 2001, doi: 10.1101/gr.157801 Genome Res. 11: 1262-1268
