Conservation of Microstructure between a Sequenced Region of the Genome of Rice and Multiple Segments of the Genome of Arabidopsis thaliana

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

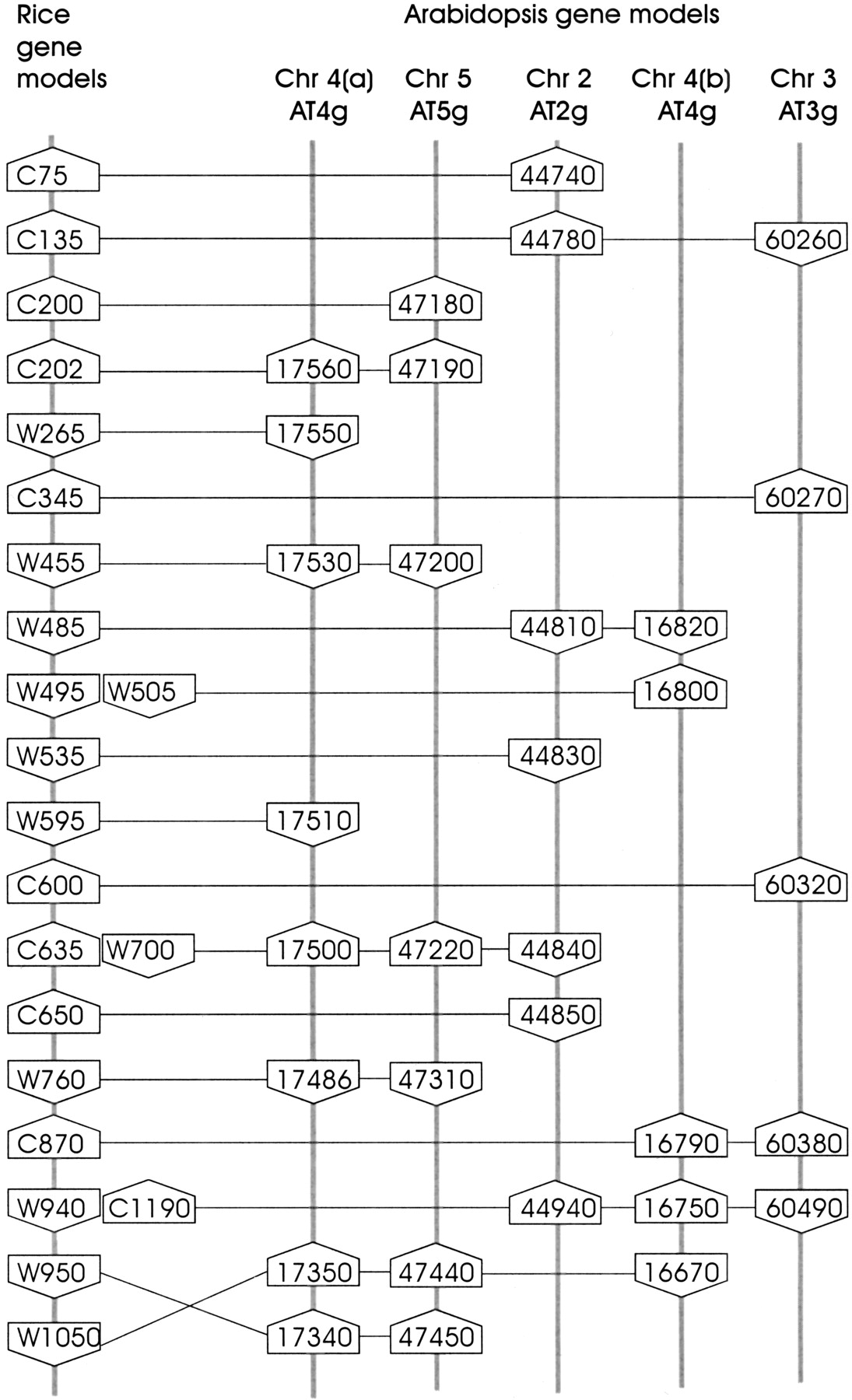

Figure 3.
Figure 3.

Comparison of the organization of conserved putative genes in the 333-kb rice DNA sequence and five segments of the Arabidopsisgenome sequence. The relative coding strands of the genes are indicated by up- or down-pointing polygons. Duplicated genes in the rice sequence that detected homology to common Arabidopsisgenes are indicated next to each other at the position of the gene with the lower reference number.

This Article

  1. Published in Advance June 12, 2001, doi: 10.1101/gr.161701 Genome Res. 11: 1167-1174
