Genome-Wide Epistatic Interaction Analysis Reveals Complex Genetic Determinants of Circadian Behavior in Mice

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 5.Figure 5.
Figure 5.

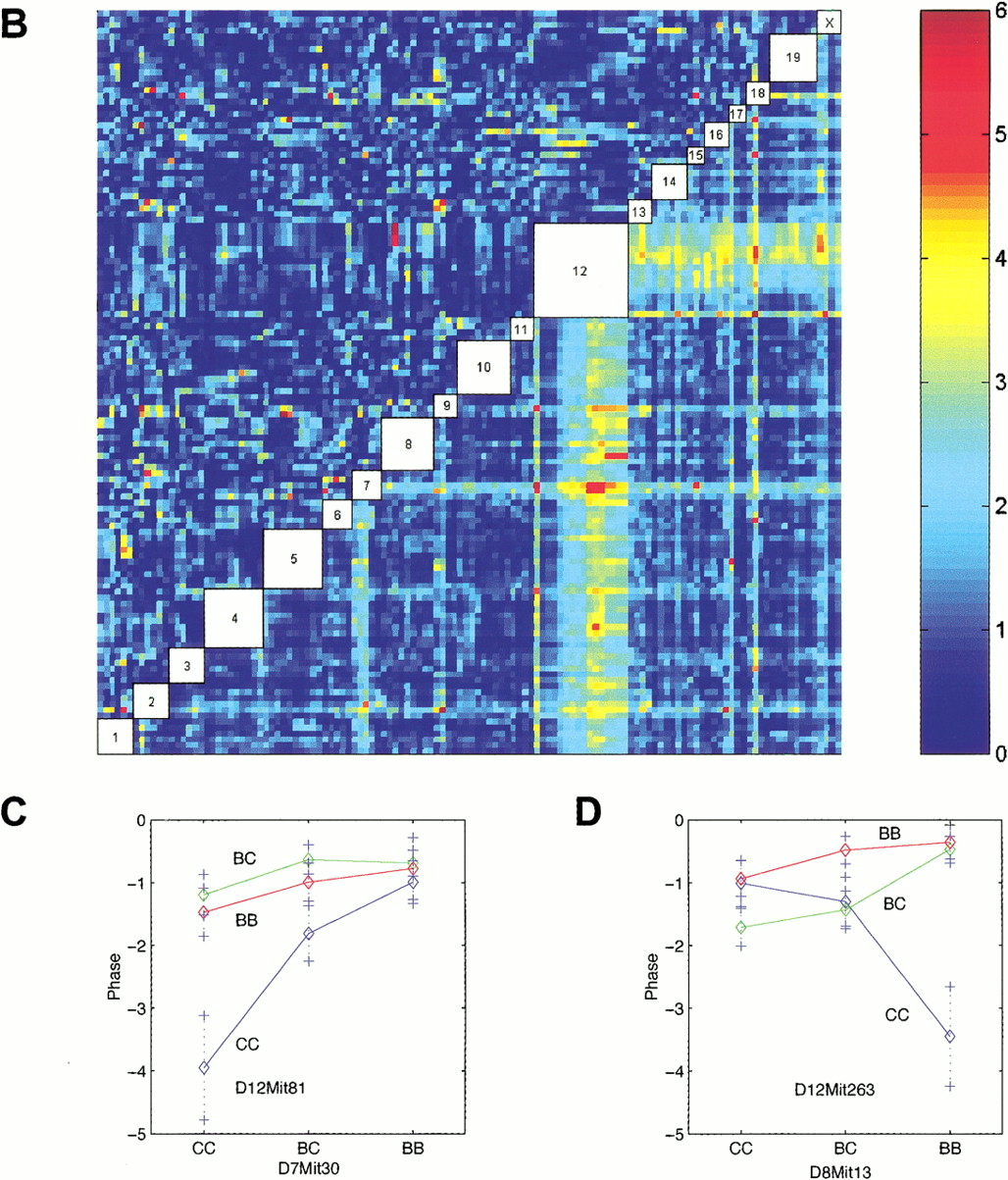

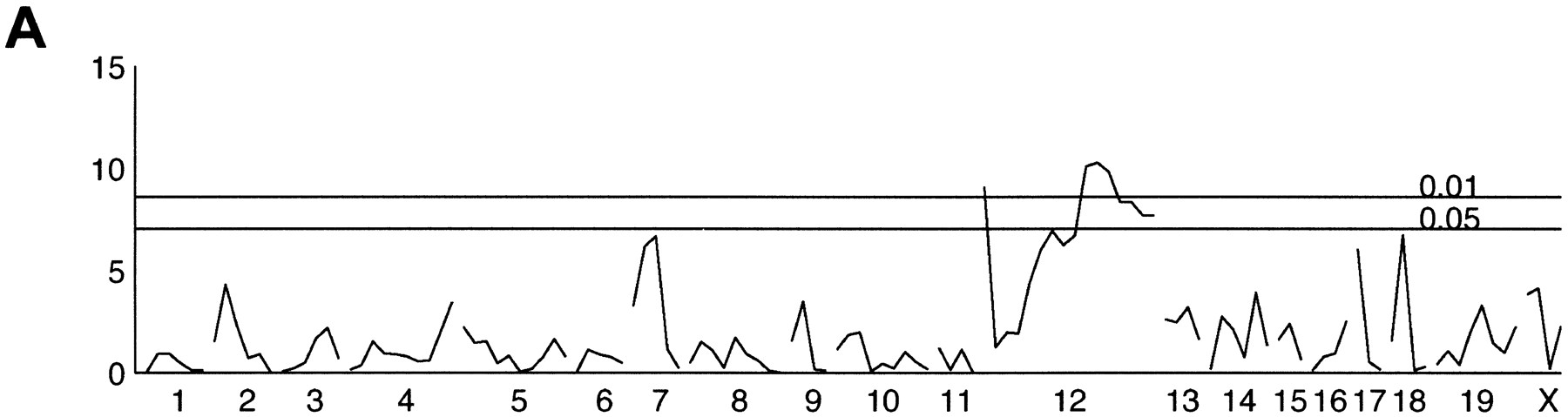

Genome-wide scan for phase angle of entrainment phenotype. (See Fig. 4for plotting details.) (A) Single marker regression genome scans for phase angle of entrainment. (B) Pairwise marker regression genome scans. (C) Pairwise interaction ofAngle-1 and Angle-4. (D) Pairwise interaction of Angle-2 and Angle-5.

This Article

  1. Genome Res. 11: 959-980
