Figure 5.

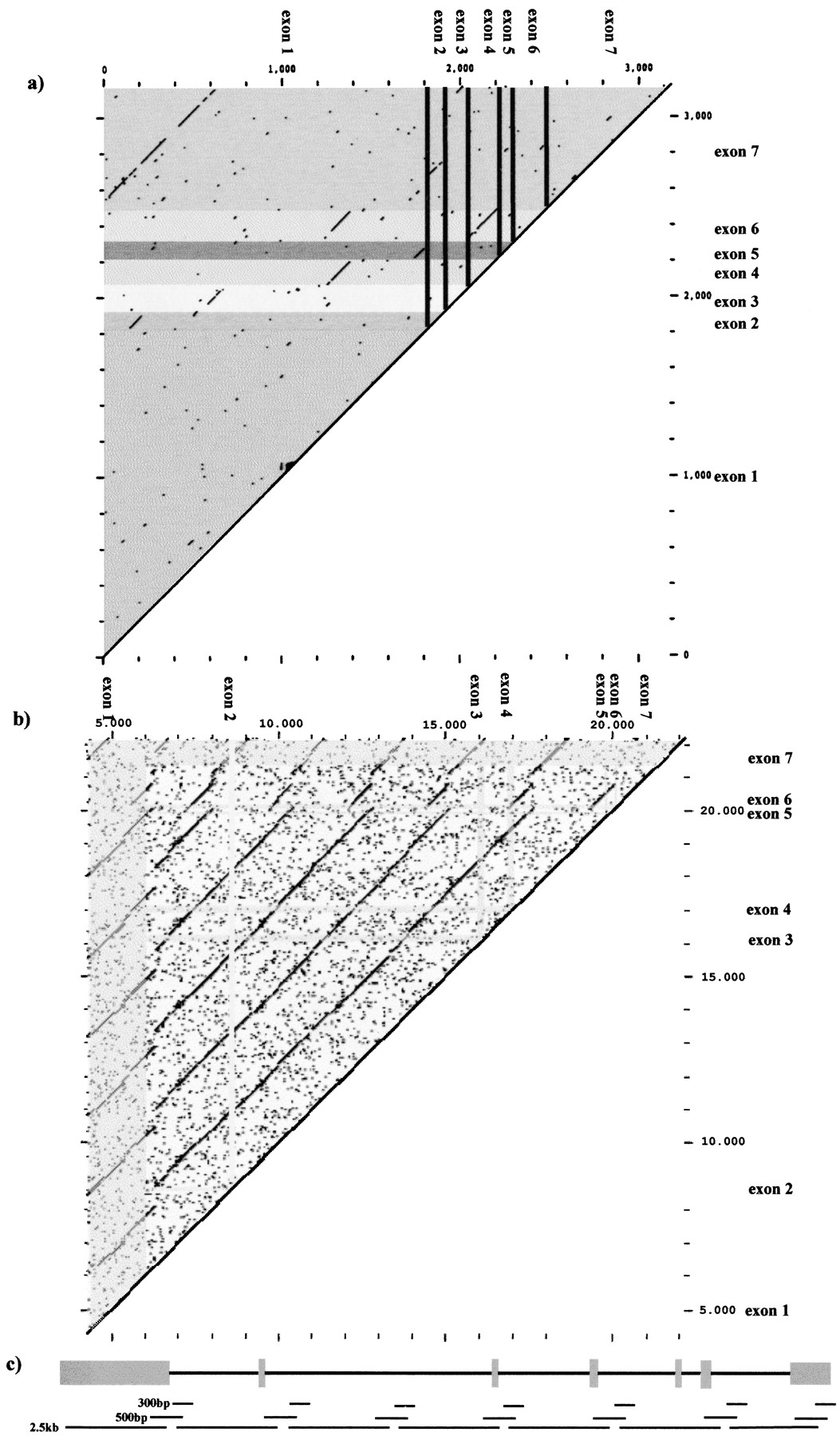

DOTPLOT analysis of (a) the TTY2 cDNA (3169 bp) to itself, and (b) TTY2 genomic DNA to itself; internal repeats appear as lines off the diagonal. For example in (a), the repeat of exon 7 sequence within exon 1 is clearly seen, and in (b) the tandem repeats of ∼2.4 kb are obvious. For clarity, a line drawing of the repeat elements within the gene is shown in (c).
