Identification and Characterization of the Potential Promoter Regions of 1031 Kinds of Human Genes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

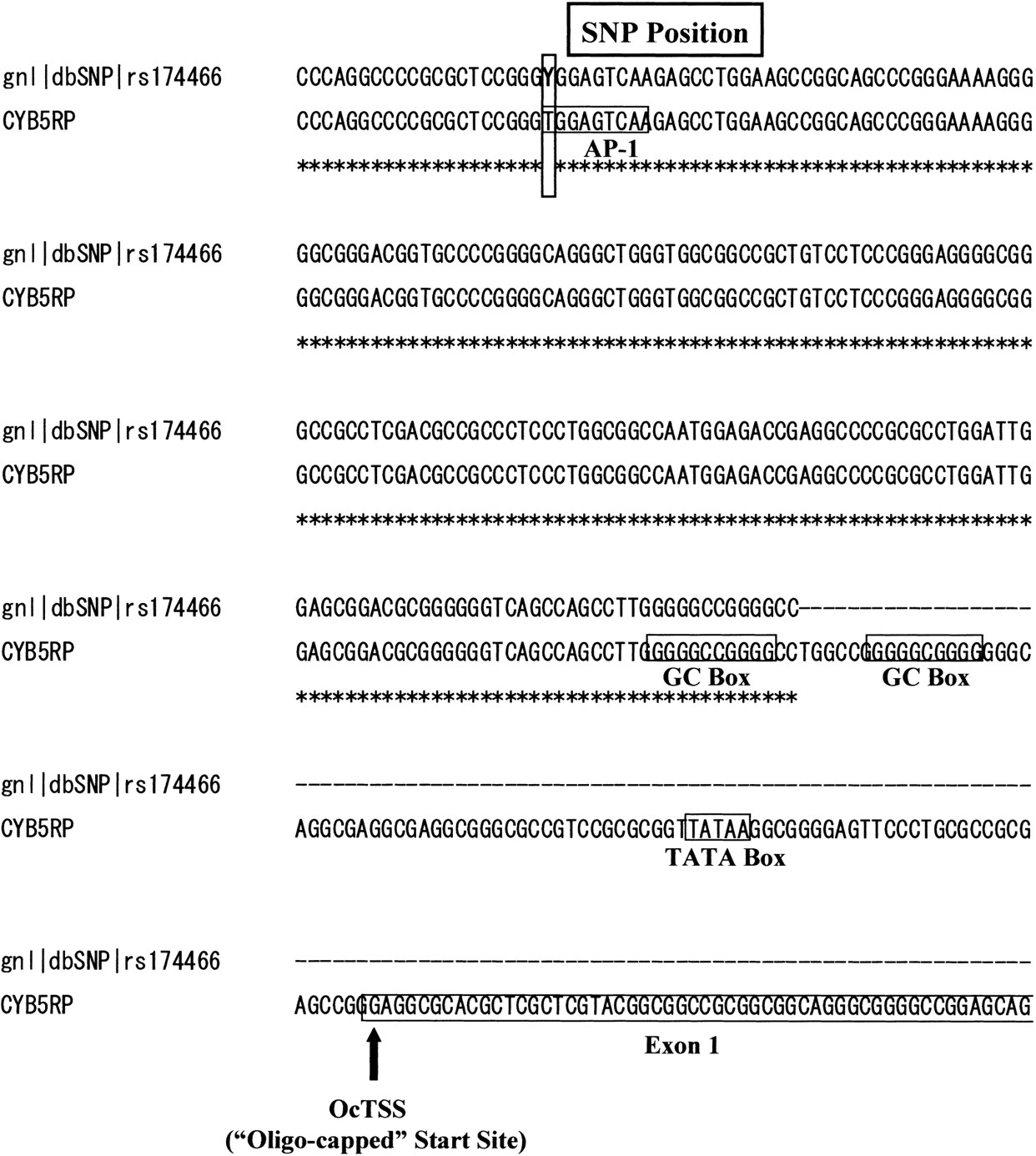

Figure 6.
Figure 6.

Identification of a SNP in the potential promoter region (PPR) ofCYB5RP. The SNP position is shown by a bold letter Y (C or T) and a box. The DDBJ/EMBL/GenBank accession number of the corresponding SNP in dbSNP is shown at left. Consensus sequences of TF-binding sites predicted by TFBIND are also shown by boxes.

This Article

  1. Published in Advance April 11, 2001, doi: 10.1101/gr.164001 Genome Res. 11: 677-684
