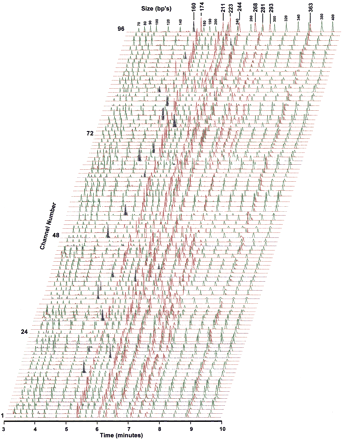

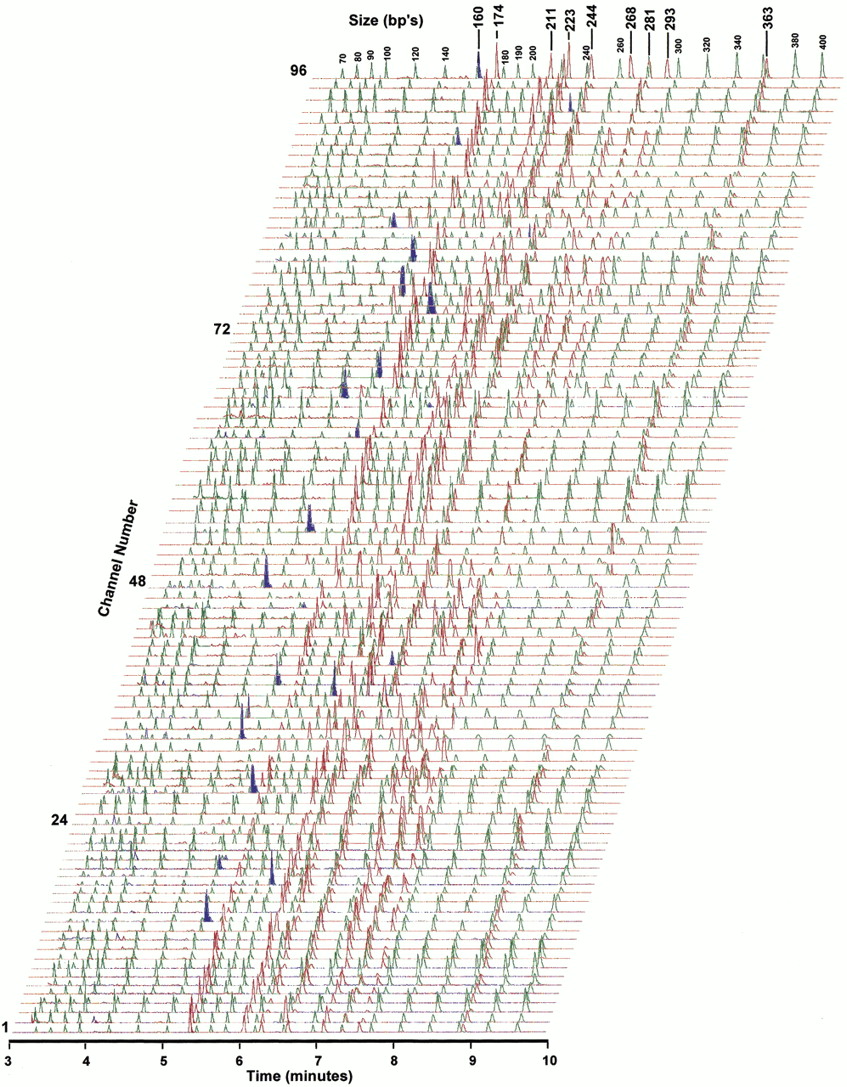

Figure 2.
Ninety-six CEPH samples genotyped for three HHC-associated variants simultaneously on a 96-channel radial CAE microplate. The numbers at the top of the electropherograms indicate the standard and amplicon sizes in bp. Electropherograms were aligned to match the 70 bp and 400 bp flanking standards. Samples with mutant alleles are easily identified by the presence of the extra R110 (blue) peaks at 160, 201, and 232 bp (63D-187g, 65C-193t, and 282Y-845a alleles, respectively).
