Comparative Sequence Analysis of the Imprinted Dlk1–Gtl2 Locus in Three Mammalian Species Reveals Highly Conserved Genomic Elements and Refines Comparison with the Igf2–H19 Region

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

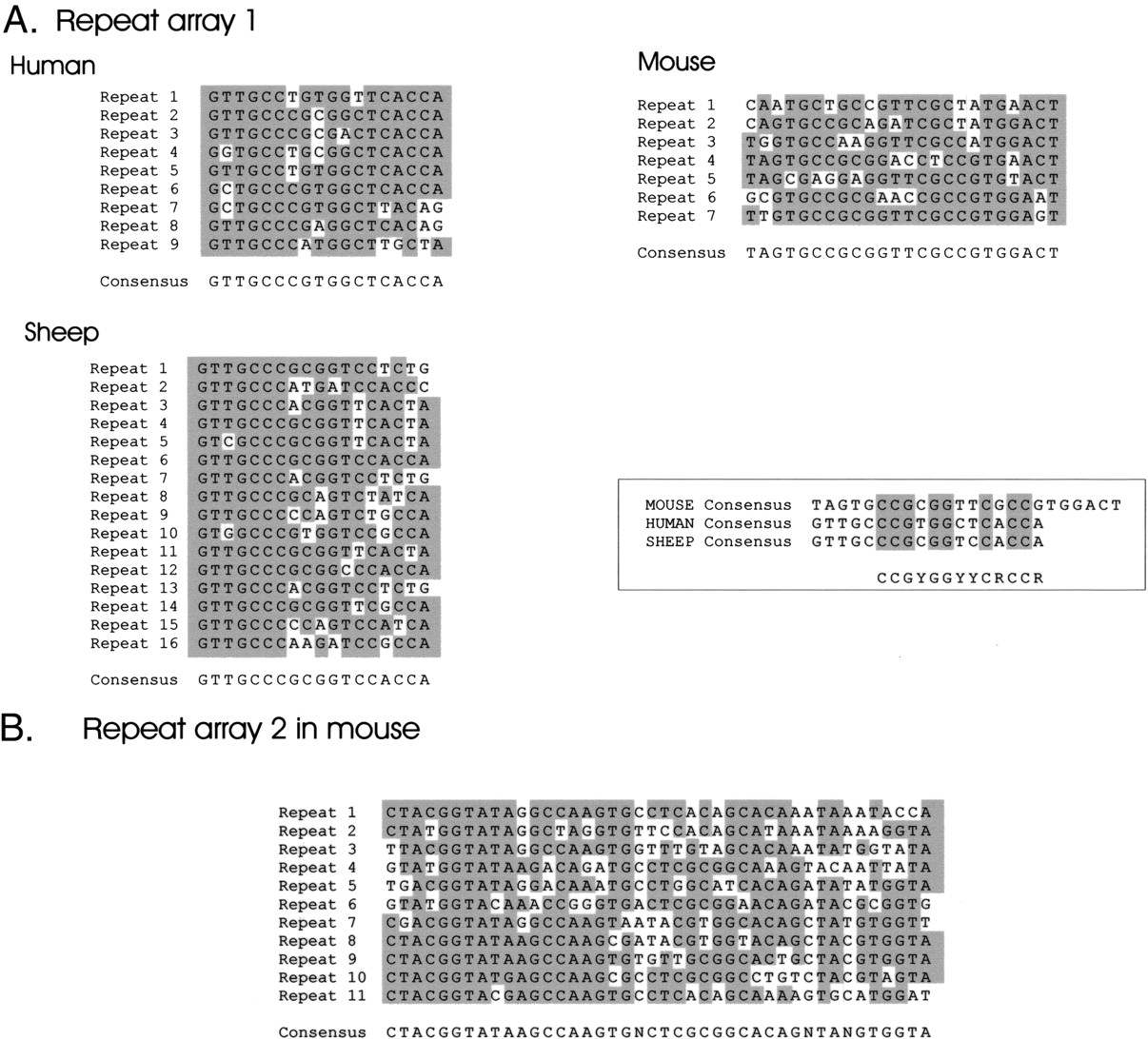

Repeated sequence motifs in the Gtl2 upstream region in mouse, human, and sheep. (A) Repeat array 1 is located 12.5–15 kb upstream of Gtl2 in mouse, human, and sheep. Shown are the repeated motifs and the derived consensus sequences. Positions that fit the consensus sequences are shown on a grey background. The similarity of the mouse, human, and sheep consensus sequences is shown in the box. (B) Repeat array 2 in the mouse is located 13.3 kb upstream of Gtl2 in the mouse. Positions that are identical to the consensus sequence are shaded.
