Parallel Genotyping of Human SNPs Using Generic High-density Oligonucleotide Tag Arrays

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 4.
Figure 4.

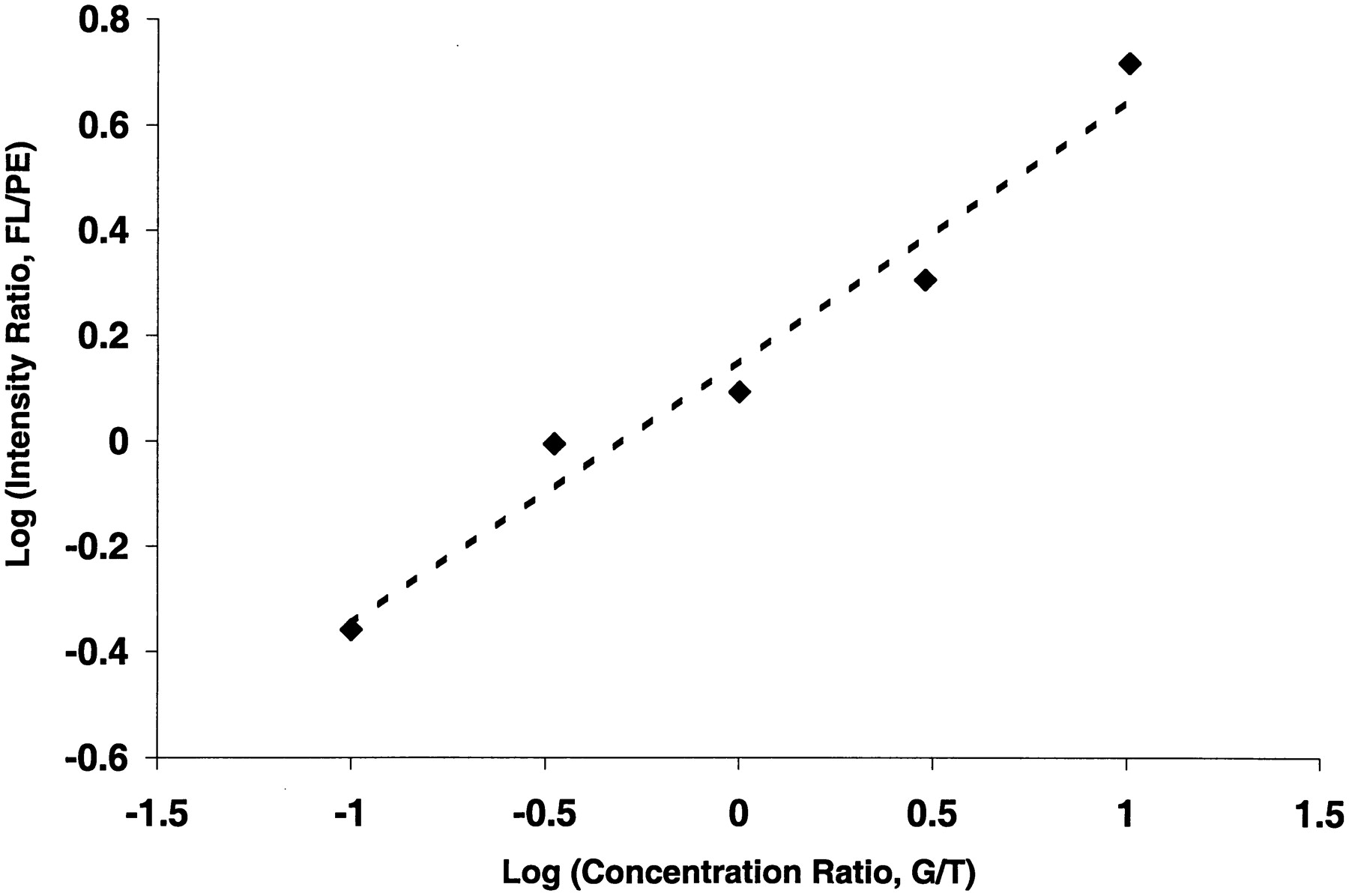

Quantitative allele frequency estimation based on two-color analysis of synthetic mixed templates. The two templates were mixed in the ratios of 1 nM/10 nM, 1 nM/3 nM, 1 nM/1 nM, 3 nM/1 nM, and 10 nM/1 nM, respectively. The logarithm of intensity ratios of the two colors (Y-axis) are plotted against the logarithm of concentration ratios of the two mixed templates (X-axis). FL, fluorescein intensity; PE, phycoerythrin intensity; G/T, concentration ratio of template G to template T.
