Null Mutation of PCLN-1/Claudin-16 Results in Bovine Chronic Interstitial Nephritis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.Figure 1.Figure 1.Figure 1.Figure 1.
Figure 1.

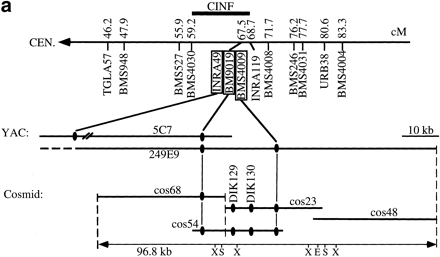

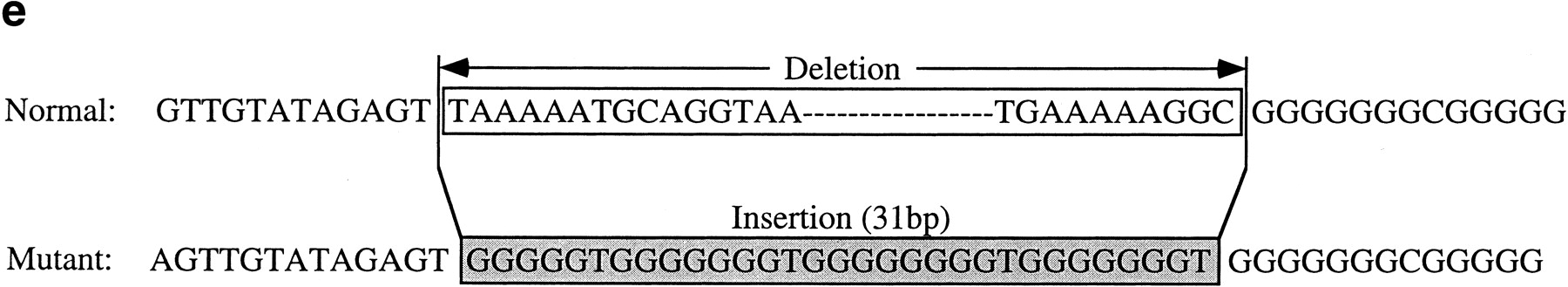

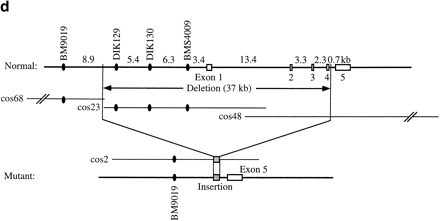

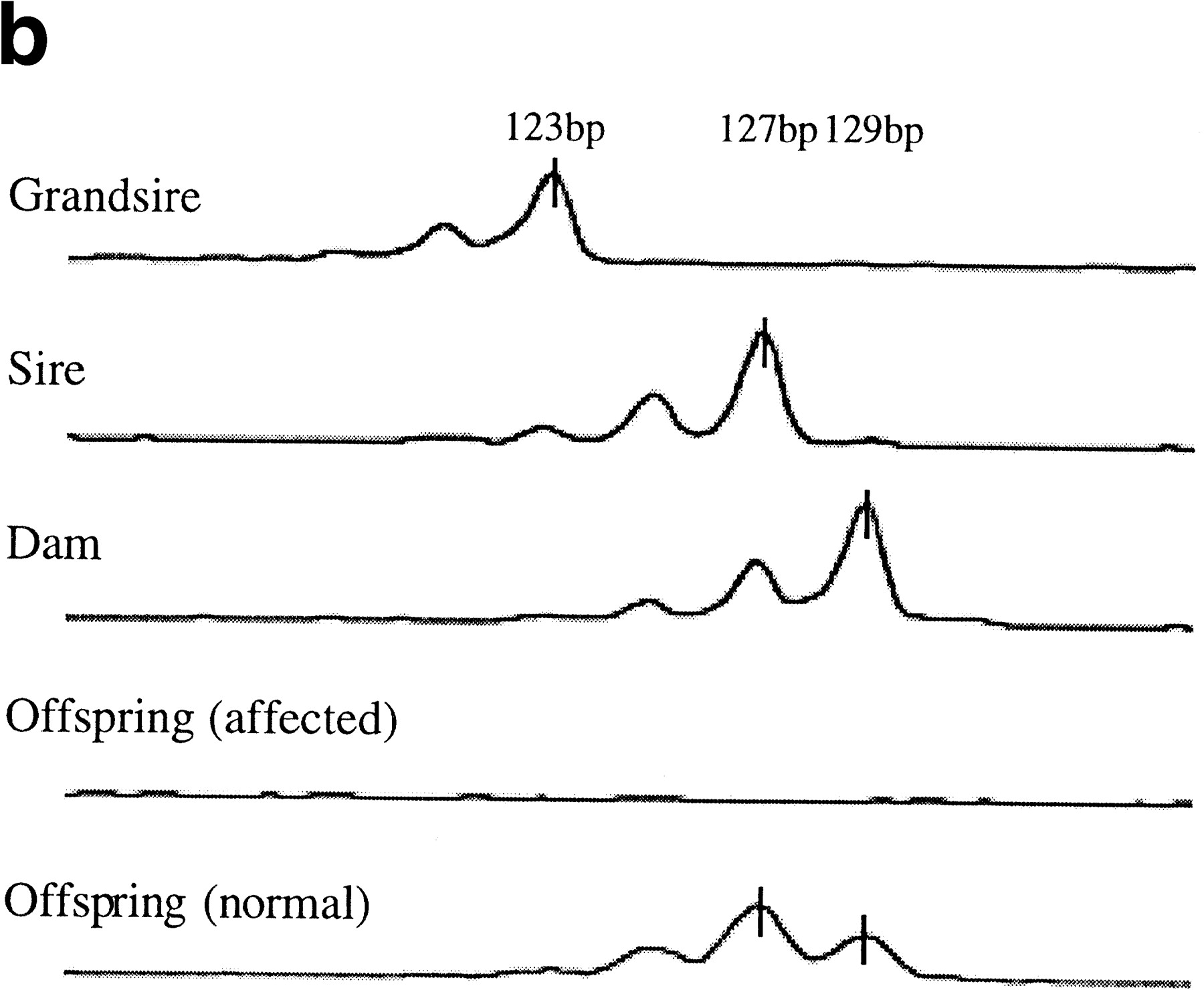

(a) Genetic (top) and physical (bottom) maps of the CINF critical region. The cosmid contig spans ∼100 kb. (E) EcoRI; (S) SacI; (X) XhoI. (b) Genotyping of DIK130. Sire and dam are offspring of grandsire. Both offspring are full siblings from sire and dam. The 123-bp allele of grandsire was not transmitted to sire and dam. (c) Southern blot of CINF-affected cattle. Genomic DNA from normal (lane 5), carrier (lanes 1,4) , and CINF-affected cattle (lanes 2,3) was digested withEcoRI. The blot was hybridized to a probe of 0.8 kb from the 5′ half of cDNA 55. Bar, 3.0-kb deleted DNA fragment. (d) Genomic structure of CL-16 and the deleted region.CL-16 is composed of five exons. The deleted region spans 37 kb and contains exons 1–4 of CL-16. In the mutant allele, there is an insertion at the deletion point. (e) Sequence of the deleted region. The G-rich inserted sequence is 31 bp.
