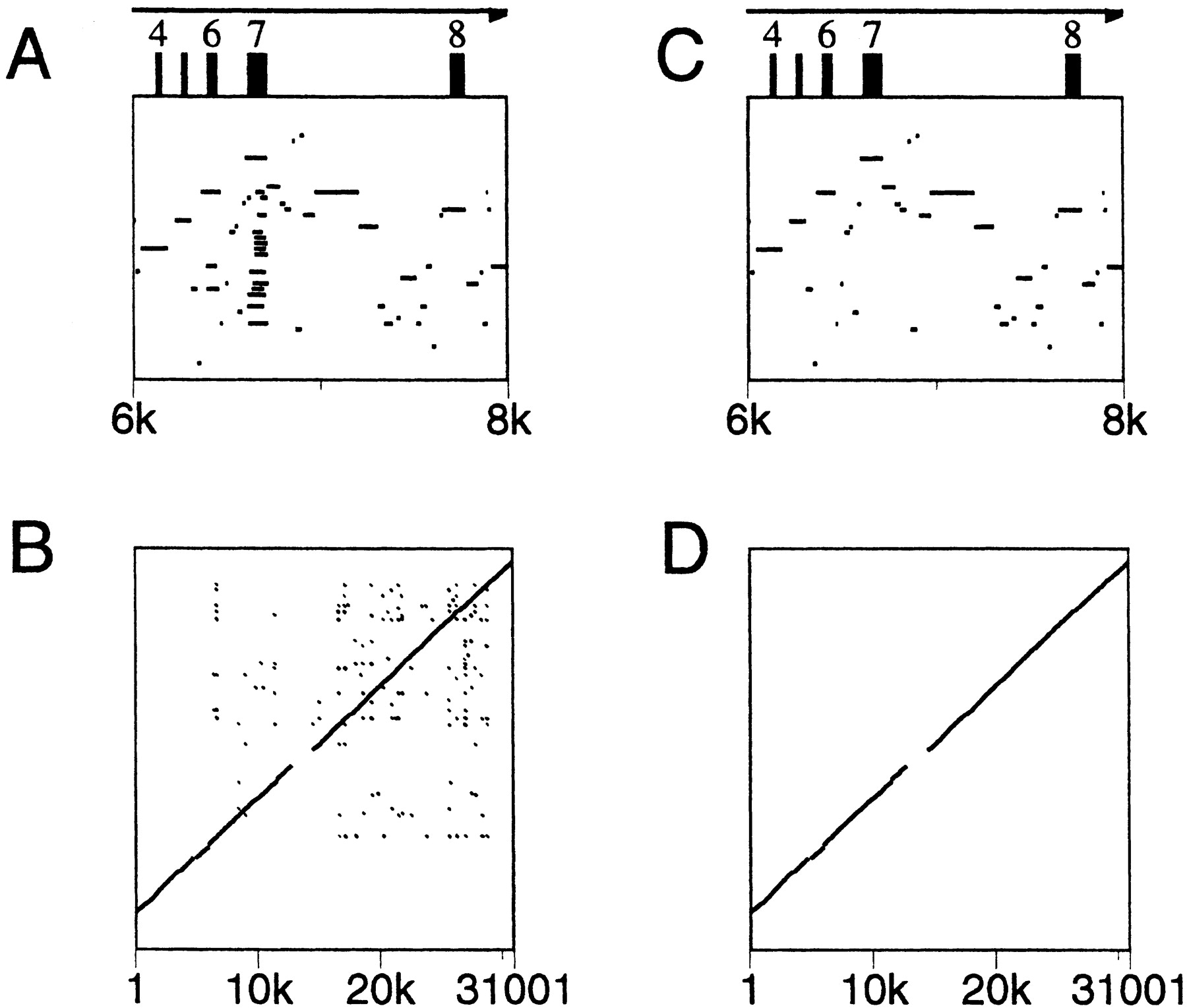

Figure 6.
Illustration of the effects of chaining. The pro-α1 type II collagen loci of humans (GenBank accession no. HUMCOL2A1Z) and mice (GenBank entry MUSPACOLL) were aligned. With PipMaker defaults, exon duplications produce redundant matches in the pip and dot plot (A,B), which are eliminated by the chaining option (C,D).
