Sequence Diversity and Genomic Organization of Vomeronasal Receptor Genes in the Mouse

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

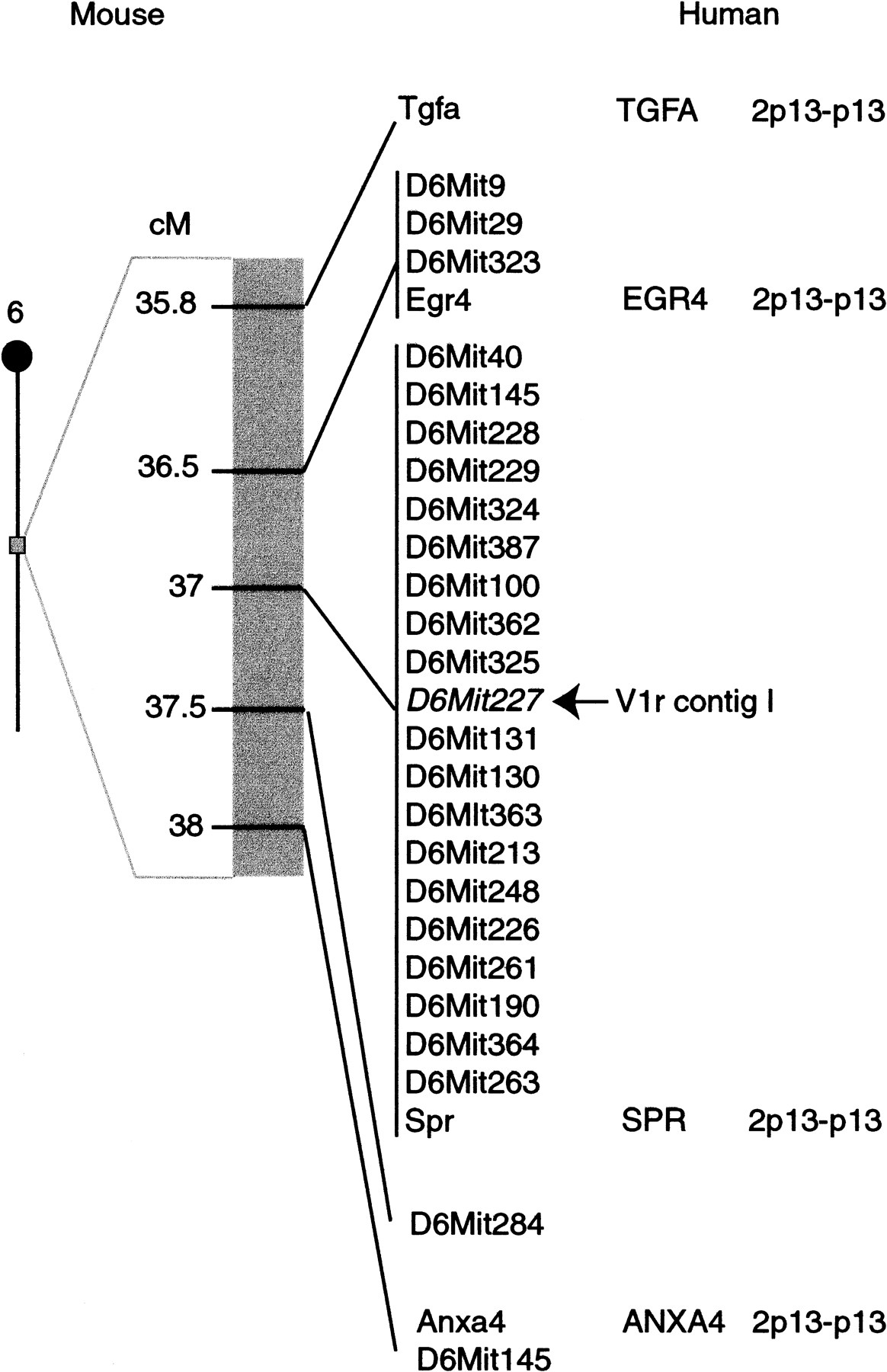

Mapping of the major BAC contig in mouse and orthologous position in human. Linkage map at ∼37cM of mouse chromosome 6, showing the position of V1r contig I and nearby MIT markers and genes. The arrow indicates that D6Mit227 maps to the V1r contig I. Flanking genes have orthologous positions on human 2p13-p13.
