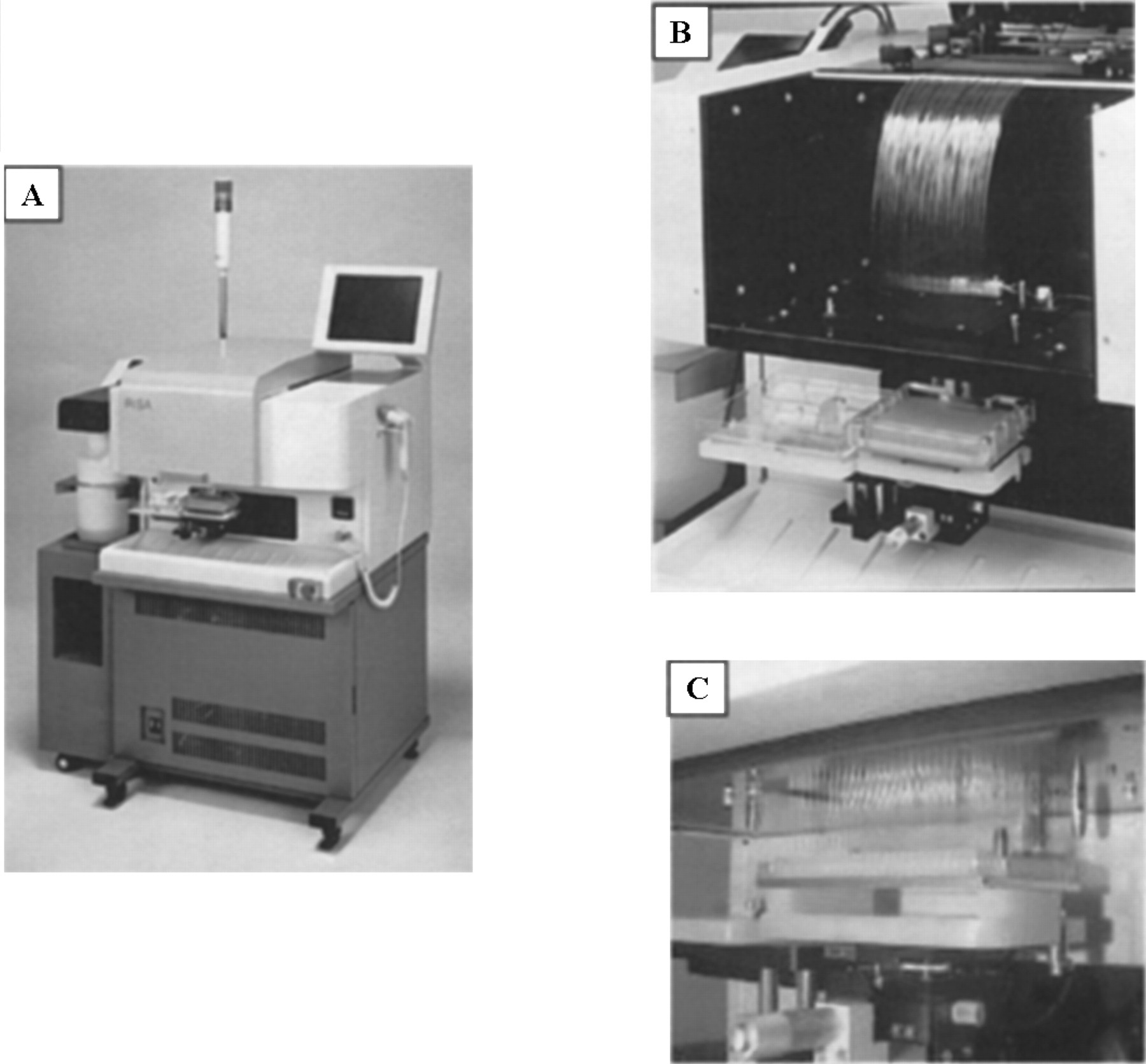

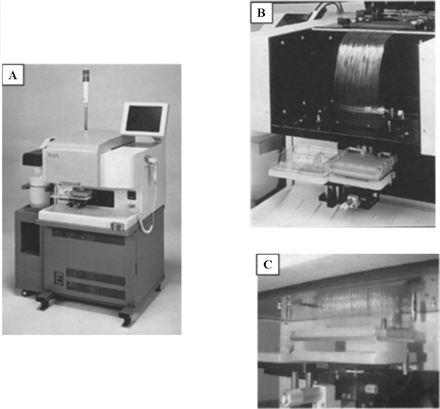

Figure 9.
Photographs of the RISA sequencer. (A) Overall view. (B) A capillary array in the temperature-controlled chamber. In A the LCD screen displays the machine status or electropherogram and enables control of the machine from the touch screen with a pen. The colored lamp atop the pole shows the current status of the machine. The unit with the white bottle is a drainage device for used buffer. B shows the temperature-controlled chamber in which the 384-capillary array is located under the lid with a handle. C shows 384 capillaries inserted into the injection plate at the sample injection operation.
