Novel Imprinted DLK1/GTL2 Domain on Human Chromosome 14 Contains Motifs that Mimic Those Implicated in IGF2/H19 Regulation

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

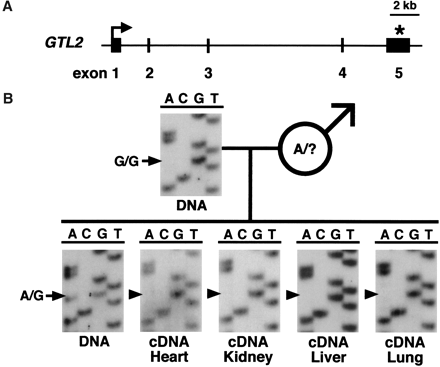

Figure 1.
Figure 1.

Predicted genomic structure and expression patterns for GTL2. (A) Predicted genomic structure of GTL2. Black boxes and horizontal lines denote exons and introns, respectively. (*) shows the location of a single nucleotide polymorphism in exon 5 (position 86,647 of accession no. AL117190). (B) Parent-of-origin–dependent monoallelic expression of GTL2. An 85-d gestation conceptus heterozygous for the A/G polymorphism in exon 5 of GTL2 was used to determine the allelic expression ofGTL2. The maternal genotype is G/G, demonstrating paternal inheritance of the A allele in the conceptus. Analysis of RNA isolated from the indicated tissues shows exclusive expression of the maternally derived G allele (i.e., A allele is unexpressed; arrowhead).
