Single Nucleotide Polymorphisms in Wild Isolates of Caenorhabditis elegans

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

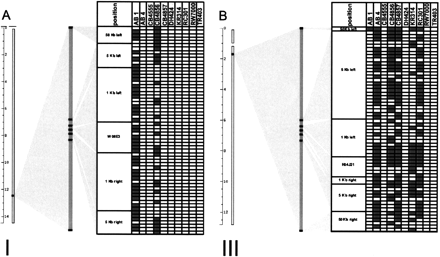

Figure 3.
Figure 3.

Detailed comparison of SNPs among isolates in SNP-rich regions near clone W08E3 on chromosome I (A) and clone H04J21 on chromosome III (B). Regions of ∼1 kb flanking the highly polymorphic clones were analyzed by directed sequencing at 1, 5, and 50 kb on each side in 10 natural isolates and N2. Polymorphisms within the tracts are shown vertically. The presence of a SNP is marked with a shaded square.

This Article

  1. Published in Advance November 8, 2000, doi: 10.1101/gr.GR-1471R Genome Res. 10: 1690-1696
