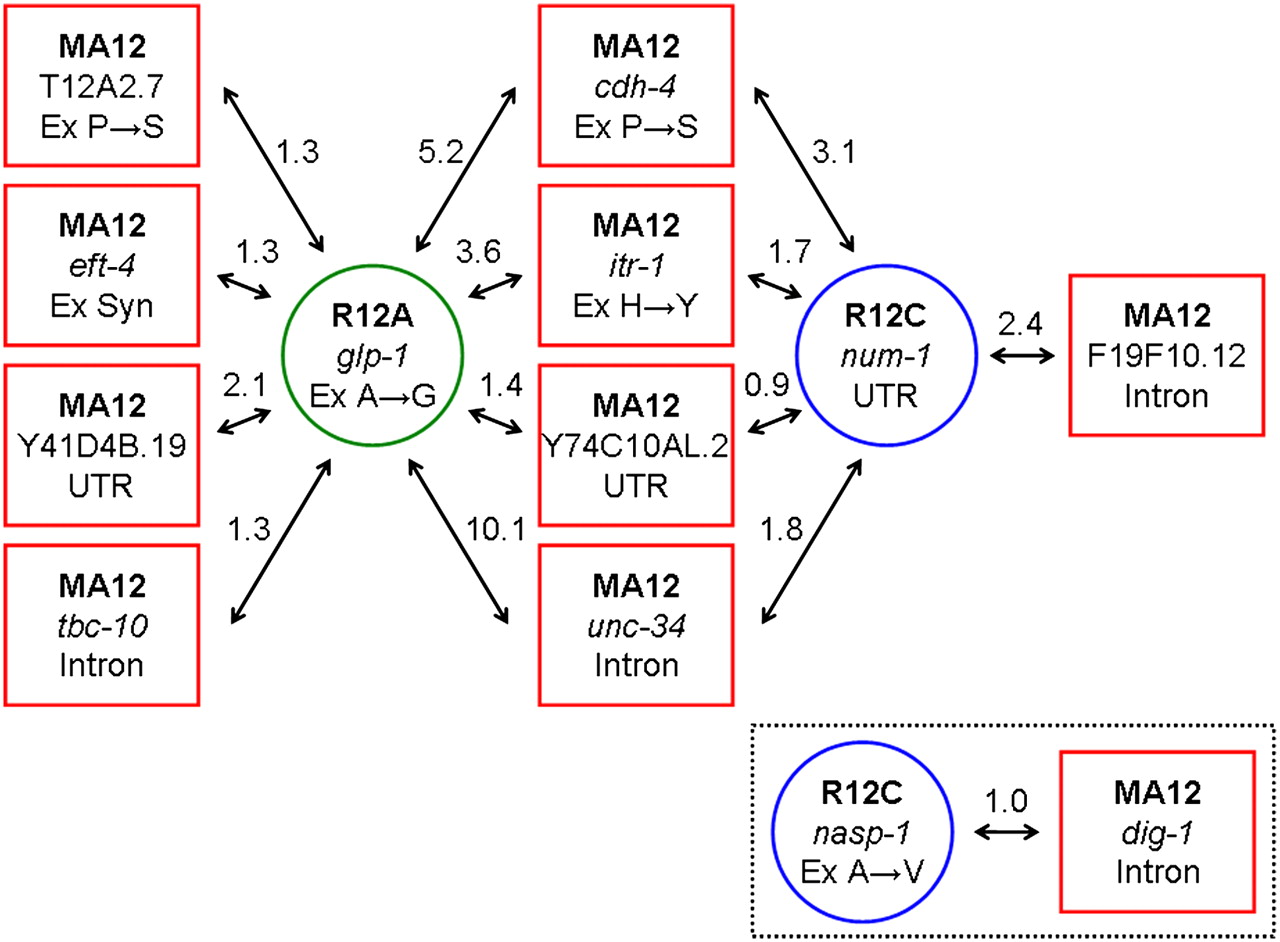

Predicted interactions of recovery line and MA line mutations. Each red square represents a MA line mutation; inside the square, the genotype (MA12) is on top, the mutated gene is in the middle, and the functional effect is indicated on the bottom. UTR, mutations in untranslated regions; Ex Syn, exon mutations that are synonymous. For nonsynonymous mutations in exons, the resultant amino acid change is indicated using single-letter codes. Circles represent recovery line mutations: (green) R12A; (blue) R12C. Genetic interactions predicted by GeneOrienteer are indicated by double-headed arrows, and the log-likelihood score associated with each predicted interaction is listed next to corresponding arrows.
